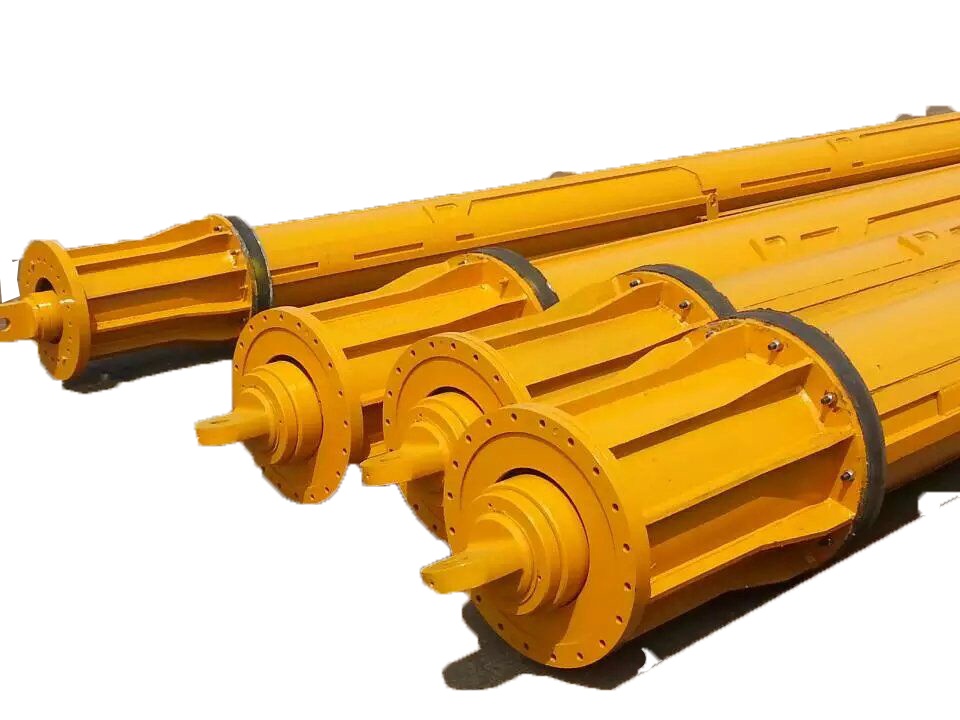

Product name : Foundation Rotary Drilling Interlocking Kelly Bar

Product No. : UMD-09

[Next Product]→

Online Inquiry Email Us

Details:

Featutre

Interlocking kelly bar is of great pressure transmission and good anti-contortion perfomance. There are 3 rigid parts between drilling pipes to transfer greater pressure from embedding cylinder. And even at the hard geologic condition it can transfer greater pressure and drill in. Stair key, organization transmission, the outside key is made by highly wear-resisting tempering steel. For soft fromations, (weak) weathered rock, hard strata construction.

Frictional kelly bar needn't unlock the joint of its inner and outer lining so that it is convenient and fast to lift the bar. Non-stair key, friction transmission the outside key is made by highly wear-resisting tempering steel. For layer of soft ground and mud, mud, (mud) sand, gravel

Technical Data

Friction Kelly Barys
O.D.(mm)	Sections	Length(m)	Depth(m)	Torque(KN.M)	Capable of supporting models
299	3/4/5	9~14	24~65	120	BAUER, SOILMEC, IMT, CASAGRANDE , MAIT SANY, JOVE
340	3/4/5	9~14	24~65	120
355	3/4/5	9~14	24~65	130
377	3/4/5	9~14	24~65	150
406	3/4/5	9~14	24~70	200
426	3/4/5	9~15	24~70	220
440	3/4/5/6	9~15	24~85	250
470	3/4/5/6	9~16.5	24~91	250
508	3/4/5/6	9~18	24~103	280
530	3/4/5/6	9~20	24~114	300
580	3/4/5/6	9~24	24~138	400
630	3/4/5/6	9~26	24~150	480
* Other sizes can be manufactured as customers demand

Technical Data

Interlocking Kelly Barys
O.D.(mm)	Sections	Length(m)	Depth(m)	Torque(KN.M)	Capable of supporting models
299	3/4/5	9~14	24~65	120	BAUER, SOILMEC, IMT, CASAGRANDE , MAIT SANY, JOVE
340	3/4/5	9~14	24~65	120
355	3/4/5	9~14	24~65	130
377	3/4/5	9~14	24~65	150
406	3/4/5	9~14	24~70	200
426	3/4/5	9~15	24~70	220
440	3/4/5/6	9~15	24~85	250
470	3/4/5/6	9~16.5	24~91	250
508	3/4/5/6	9~18	24~103	280
530	3/4/5/6	9~20	24~114	300
580	3/4/5/6	9~24	24~138	400
630	3/4/5/6	9~26	24~150	480
* Other sizes can be manufactured as customers demand
